RADIO 5 LOG/8

RADIO 5 Log/8, recording system audio that allows 24 hour channel recording, admits follow up of the emitted to the air, legal copy, etc… It consists of a recording module, in any Windows® compatible audio format (MP3, WAV, etc.) and a player module for subsequent consultation, performs continuous recording 24 hours in blocks defined by the user. It can be installed on a network or in a central database server.



Tech Specs

  • Developed entirely in 32 bits with a Windows® execution platform, that allows it to accept any compatible hardware, so the user gets an excellent performance at a lower cost and through a longer recording time using the smallest disk space.​
  • It allows the user to define the time recording blocks or record 24 hours non-stop.
  • Records in simultaneous 8 (eight) stereo audio channel or 16 (sixteen) mono signals, at Windows® compatible format, accessing their posterior edition with any audio editor.
  • Is an ideal system to cover multiple tasks within a station or check-up of advertising agency.
  • Its different types of work make this product an indispensable tool when it comes to having an electronic registry of emission environment.
  • Defines blocks time recordings generating complete independence between the operator and the editor, since this does not require the attention of the operator to record the news blocks that requires.
  • Fully configurable network and recording format full compatible with Windows® make RADIO 5 Log/8 a necessary tool for the audit of the emitted to the air.
  • Real broadcasting copy.
  • More recording time using the minimum disk space.
  • Safety and reliability.
  • Instant recovery of recorded blocks. Audio folder identification per channel.
  • Network configuration.





Minimum Requirements

  • CPU: Intel® I5® or higher.
  • Video Board: PCI Express (Not integrated).
  • Motherboard: with Intel® chipset, without integrated video.
  • RAM: 1 Gb or higher.
  • Monitor: 1280 x 768 resolution or higher.
  • Operating System: Microsoft Windows® XP, SEVEN and Windows® 8.
  • Hard Disk: 80 Gb for Operating System and 320 Gb for database storage or higher.
  • 4 channels stereo analog I/O Audio Card







In a Glimpse

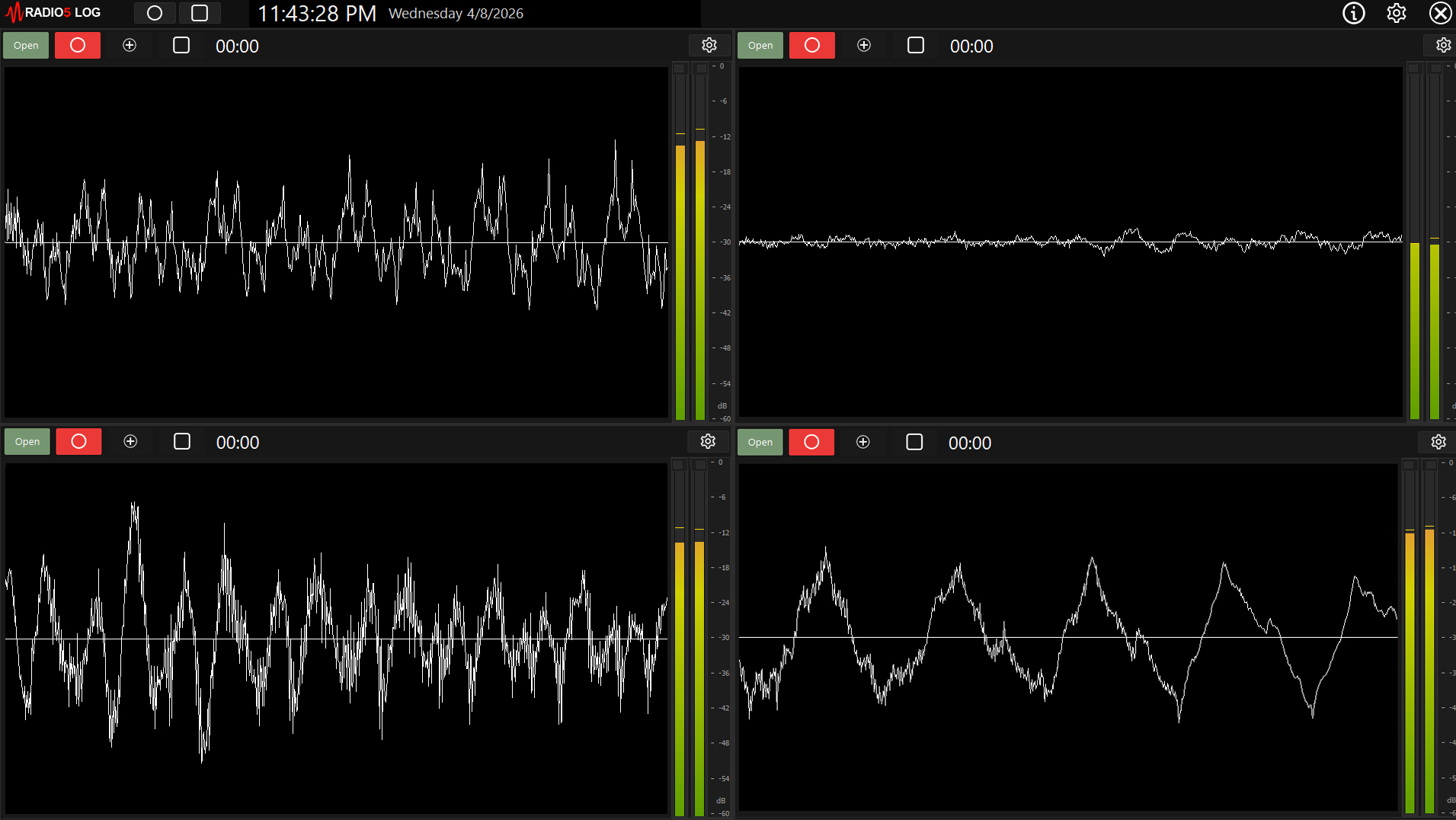

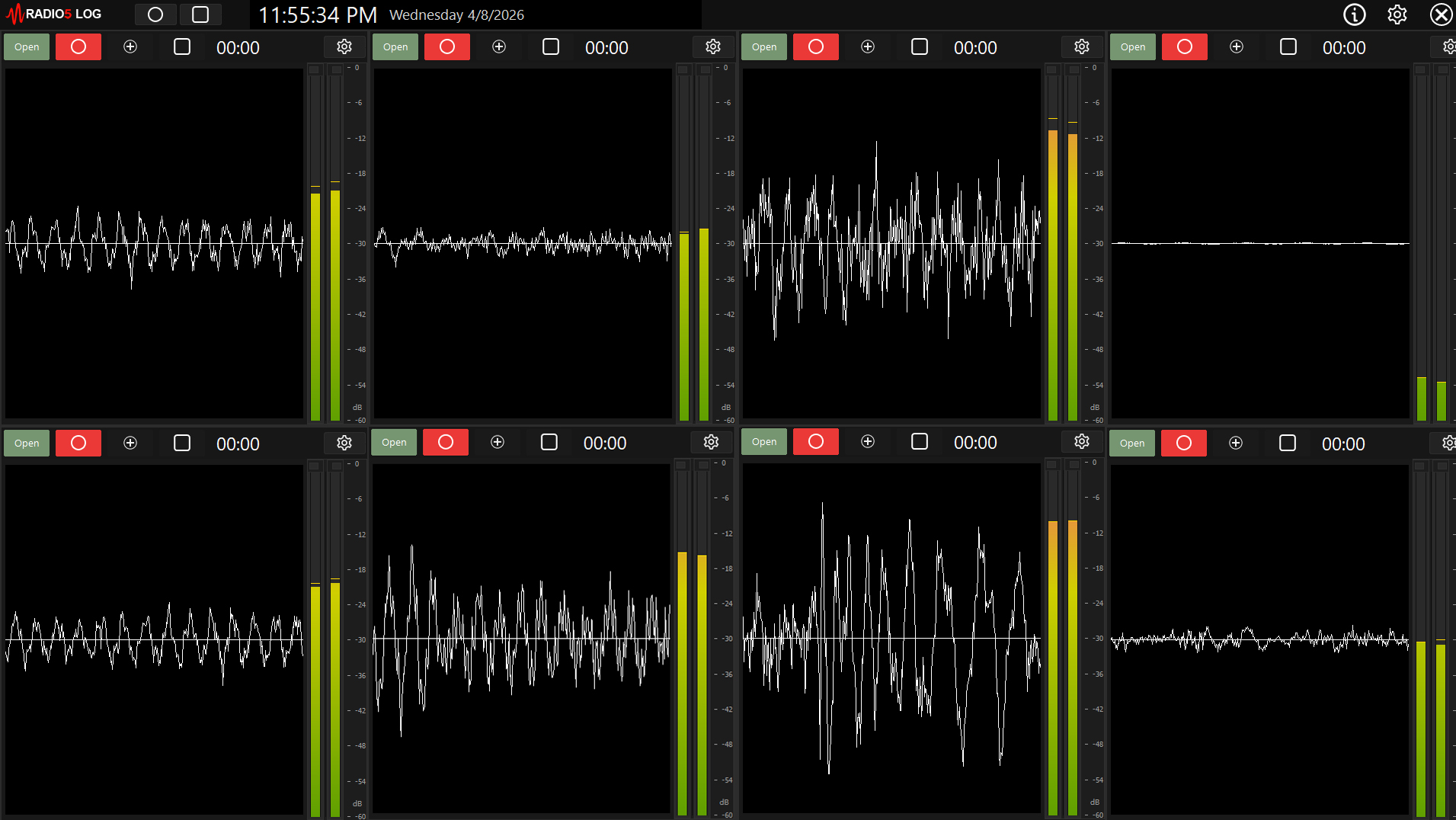

  • Simultaneous recording of up to 8 audio stereo channels or 16 mono channels
  • Time block definition of recording
  • Recorded audio reproduction from date and time
  • Compression format compatible with any audio editor
  • MP3, WAV, etc compression in mono or stereo
  • Compatible with Windows® XP, SEVEN and Windows® 8
